Composite Rebar Comparison: Glass, Basalt, and Carbon Fiber Performance Explained

Introduction: Why Composite Rebars?

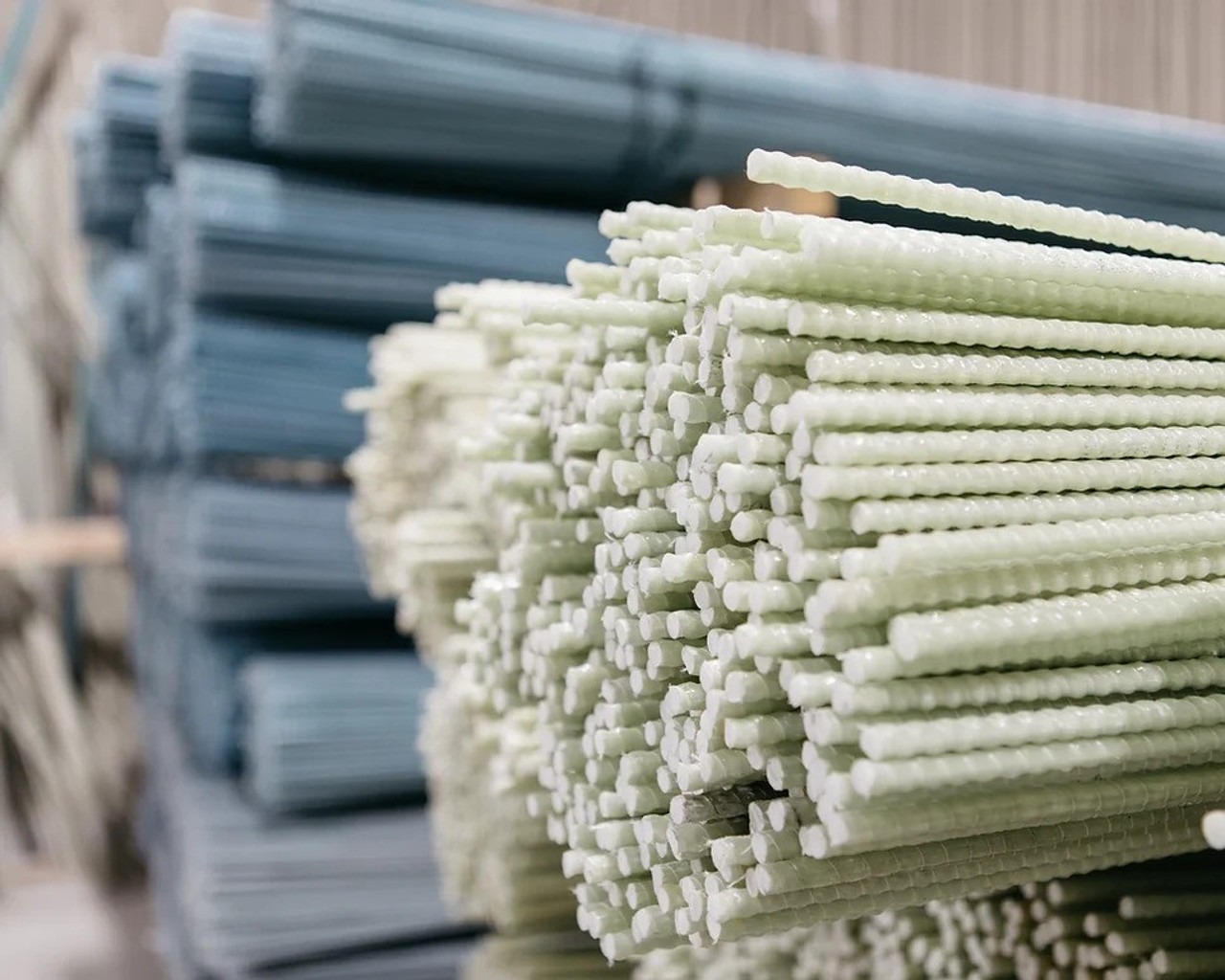

Composite rebar, also known as FRP (Fiber Reinforced Polymer) rebar, is increasingly used as a lightweight, corrosion-resistant alternative to traditional steel reinforcement. The three most popular types are made from glass fiber (GFRP), basalt fiber (BFRP), and carbon fiber (CFRP). Each material offers a unique blend of properties that impact performance, cost, and application suitability.

1. Comparative Table: GFRP vs. BFRP vs. CFRP

Note: Data are indicative and may vary by manufacturer and processing method.

2. Material Origins & Manufacturing

• Glass Fiber (GFRP): Made from silica sand, limestone, and alumina, GFRP rebars are the most affordable and widely produced composite rebars.

• Basalt Fiber (BFRP): Extracted from volcanic rock, basalt fibers offer improved chemical and thermal performance over GFRP.

• Carbon Fiber (CFRP): Synthesized from polyacrylonitrile (PAN), carbon fibers are exceptionally strong and stiff, but also the most expensive.

All three types are embedded in thermosetting resin (typically epoxy or vinyl ester) and formed through pultrusion or filament winding.

3. Which Composite Rebar Is Right for Your Project?

✅ Choose GFRP Rebar if:

• You need a low-cost, non-corrosive solution for buildings, roads, or public infrastructure.

• Your project involves moderate loads and non-extreme environments.

✅ Choose BFRP Rebar if:

• You're working in coastal, chemical, or high-temperature areas (e.g., desalination plants, tunnels).

• You want better UV, chemical, and thermal resistance than GFRP, but still at a reasonable price.

✅ Choose CFRP Rebar if:

• The project demands maximum strength, stiffness, and durability (e.g., nuclear facilities, defense bunkers).

• You're not constrained by budget and need minimal thermal expansion or precise structural performance.

4. Price Trends and Availability

Prices are indicative and vary based on diameter, surface treatment, and regional supply.

5. Final Thoughts: Composite Rebar Is Not One-Size-Fits-All

While all three types of composite rebars outperform steel in corrosion resistance and weight reduction, the best choice depends on your project's needs:

• Budget-sensitive? Go with GFRP.

• Need higher performance in harsh conditions? Try BFRP.

• Designing a critical, high-performance structure? Opt for CFRP.

Need Help Choosing?

At GTOFRP™, we supply a wide range of customizable composite rebars, from cost-effective GFRP to advanced CFRP solutions. Contact us for data sheets, sizes, and pricing tailored to your application.
