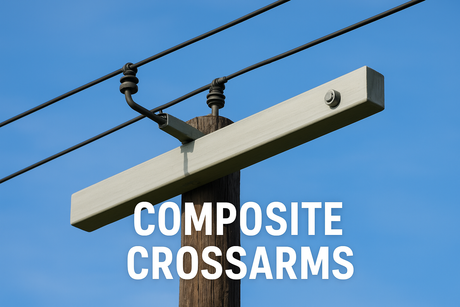

1. Why Utilities Are Shifting Toward FRP Crossarms

As distribution networks expand and aging infrastructure requires replacement, utilities face rising maintenance workloads. Traditional materials—especially wood—often degrade faster in modern environments. FRP crossarms offer a stable alternative with predictable long-term performance.

1.1 Long service life with minimal degradation

FRP does not rot, corrode, or attract insects, which allows it to maintain mechanical strength over time. For utilities managing thousands of poles, reducing inspection and replacement frequency has significant cost benefits.

1.2 Consistent insulation performance

Electrical insulation is a built-in material property of FRP, reducing pole-top fire risks and helping maintain reliable separation between energized components.

1.3 Stable behavior under different climates

FRP crossarms do not swell, warp, or crack under moisture, heat, or cold. This stability supports predictable line tension and reduces mechanical failure risks.

2. Mechanical and Material Benefits Relevant to Engineers

2.1 High strength-to-weight ratio

Pultruded FRP achieves consistent tensile and bending strength while keeping weight low. This combination makes installation easier and reduces stress on poles.

2.2 Impact and fatigue resistance

Unlike wood, which weakens with moisture cycles, or steel, which suffers from corrosion fatigue, FRP maintains structural integrity even in environments with temperature swings or mechanical vibration.

2.3 Non-conductive and non-magnetic

These properties reduce energy loss, avoid lightning-related conduction paths, and support safer field work.

3. Operational Advantages for Contractors and Utilities

3.1 Easier handling and installation

FRP crossarms are typically easier to lift and position, especially on elevated poles. For remote installations, where machine access is restricted, this reduces deployment time.

3.2 Lower lifecycle and maintenance cost

Because FRP requires no painting, chemical treatment, or corrosion inspection, maintenance can be focused on the rest of the system rather than the crossarm.

3.3 Standard hardware compatibility

Most FRP crossarms match common mounting patterns. Utilities switching from wood or steel often do not need to change fittings.

4. Application Scenarios in Power Distribution

4.1 Standard overhead distribution lines

FRP crossarms maintain stable performance across years of outdoor exposure, providing utilities with a reliable replacement for wood.

4.2 Rural electrification

Lightweight construction simplifies manual installation, reducing labor requirements in fields, mountains, or remote villages.

4.3 Coastal areas

Salt spray accelerates steel corrosion and wood decay. FRP offers a long-term solution with minimal degradation.

4.4 Industrial zones with chemical exposure

FRP retains strength even in environments containing chlorine, sulfur compounds, or other airborne chemicals.

4.5 Cold-region distribution lines

FRP does not become brittle under low temperatures, which helps prevent sudden mechanical failures.

5. Customization Options for Different Network Standards

Utilities across regions use various pole heights, conductor arrangements, and hardware layouts. FRP crossarms can be produced in:

• Custom lengths

• Custom mounting hole layouts

• Different mechanical grades

• Surface treatment options for enhanced UV exposure resistance

Because pultrusion supports modular configuration, these customizations do not affect production consistency.

6. Manufacturing Capability Overview (GTOFRP™)

GTOFRP™ designs and manufactures FRP crossarms with the following capabilities:

6.1 Stable pultrusion process

Ensures consistent fiber alignment, dimensional accuracy, and repeatable mechanical properties across batches.

6.2 Support for medium and large-scale utility orders

Production lines maintain steady output suitable for utility tenders, contractor projects, and multi-region deployments.

6.3 Engineering support for procurement teams

Assistance available for selecting mechanical grades, defining mounting layouts, and verifying compatibility with existing hardware.

This combination helps utilities streamline procurement and ensure long-term performance in the field.

FAQ

1. Do FRP crossarms last longer than wood crossarms?
Yes. FRP remains stable without rotting or insect damage, offering significantly longer service life.

2. Will FRP corrode in coastal environments?
No. FRP is fully resistant to salt spray and humidity-related corrosion.

3. Are custom sizes available?
Yes. GTOFRP™ can provide custom lengths and mounting hole configurations.

4. Are FRP crossarms compatible with current hardware?
They typically match standard fittings, allowing direct replacement in most distribution systems.

5. Is FRP suitable for cold or high-temperature regions?
Yes. FRP maintains strength and flexibility across a wide temperature range.

6. How does the weight compare to steel?
FRP is lighter than steel, simplifying installation and reducing stress on poles.

CTA

For technical specifications, customization options, or procurement inquiries for FRP crossarms, contact GTOFRP™. Our team supports utilities and contractors with stable production, consistent quality control, and reliable lead times for distribution line projects.
