How to Install an FRP Panel Water Tank: Step-by-Step Guide

What Is an FRP Panel Water Tank?

FRP (Fiberglass Reinforced Plastic) panel water tanks, also known as SMC tanks, are modular storage systems widely used for potable water, industrial water, and fire protection. Brands like GTOFRP™ provide pre-molded panels that are assembled on-site, making installation flexible and space-efficient.

Tools and Materials Required

Before starting the installation, ensure the following are available:

• GTOFRP™ FRP tank panels (base, side, top)

• Stainless steel bolts and sealing washers

• Rubber gaskets or food-grade sealant

• Internal tie rods and bracing system

• Spanners, torque wrench, sealant gun

• Leveling instruments (laser or water level)

• Hoist or pulley (for large panels)

Installation Steps

Step 1: Prepare the Foundation

A stable, level concrete base is essential.

• Minimum thickness: 300 mm

• Tolerance: Leveling deviation should not exceed 5 mm

• Drainage: Install floor drains or slope the base slightly

• Anchoring: Embedded anchor bolts may be required for tanks over 20,000 L

Tip: GTOFRP™ offers design support for tank foundation based on project size and soil conditions.

Step 2: Assemble the Base Panels

• Lay out the bottom panels in the required tank dimensions.

• Connect panels using stainless steel bolts and rubber sealing washers.

• Tighten bolts diagonally to ensure even pressure and proper sealing.

Step 3: Erect the Side Panels

• Attach side panels row by row, starting from one corner.

• Use vertical corner panels or L-brackets for structural stability.

• Apply food-grade sealant between all joints.

• Bracing systems (vertical and horizontal tie rods) should be installed every 1 meter.

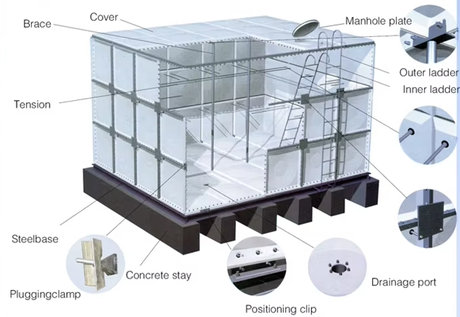

Step 4: Install the Top Panels and Accessories

• Once side panels are complete and braced, mount the top cover panels.

• Ensure top panel bolts are fastened tightly and evenly.

• Install the following accessories as needed:

• Inlet & outlet pipes

• Overflow and drainage pipes

• Manhole cover or inspection hatch

• Air vent and internal ladder

Step 5: Seal the Joints

• All bolt joints must be sealed with gaskets or polyurethane sealant.

• Sealant must be fully cured before water testing—typically 24–48 hours.

• GTOFRP™ tanks use high-performance non-toxic sealants, suitable for drinking water.

Step 6: Fill and Test the Tank

• Conduct a hydrostatic test by filling the tank with clean water.

• Monitor for 24 hours to check for leaks or deformation.

• Retighten bolts if necessary during the test.

• Inspect bracing system and ensure no displacement.

Installation Tips for Long-Term Performance

• Avoid direct sunlight during curing to prevent sealant failure.

• Do not over-torque bolts — use torque wrench to prevent panel cracking.

• For cold climates, add thermal insulation panels around the tank.

• In earthquake-prone zones, GTOFRP™ offers seismic-resistant bracing designs.

Why Choose GTOFRP™ for Modular Water Tanks?

• ISO-certified manufacturing

• Easy-to-assemble modular systems

• On-site installation support available

• Resistant to UV, corrosion, and deformation

• Custom tank kits with accessories and manuals

Conclusion

Installing an FRP panel water tank is straightforward with the right tools, careful planning, and proper sealing. Following the steps above will ensure your GTOFRP™ water tank is leak-free, hygienic, and ready for years of reliable use.
