Fiberglass (GFRP) vs Steel Rebar: Material Science & Composition Breakdown
Choosing the right reinforcement material for your concrete project isn't just about price or strength — it’s also about what it’s made of. This article compares the material composition of fiberglass rebar (GFRP) and traditional steel rebar, and explains how those differences impact performance, durability, and application.

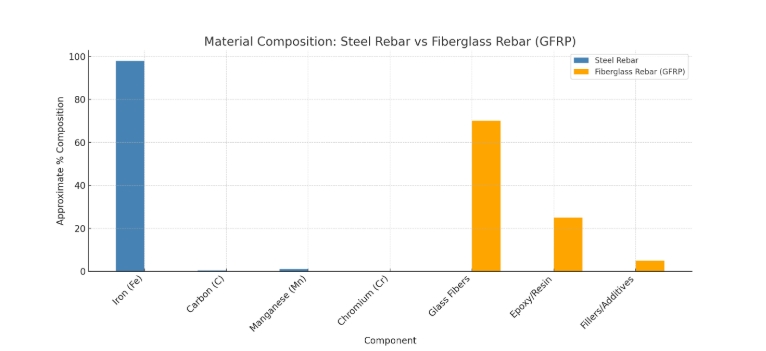

Steel rebar is made from carbon steel or mild steel, which is alloyed primarily with:
| Element | Purpose |
Iron (Fe) | Main structural material |
Carbon (C) | Increases strength and hardness |
Manganese (Mn) | Improves tensile strength |
Phosphorus (P) & Sulfur (S) | Generally minimized to avoid brittleness |
Chromium (Cr) (in stainless types) | Boosts corrosion resistance |
Typical Composition of Carbon Steel Rebar (%):
Fe: ~98%
C: 0.3–0.6%
Mn: 0.5–1.5%
Cr/Ni/Mo: optional, in stainless steel variants
Key Properties:
High ductility and shear strength
Susceptible to corrosion in moisture, salt, or chemical environments
GFRP rebar is a composite material, consisting of:
| Component | Function |
Glass Fibers | Primary structural reinforcement |
Epoxy/Resin Matrix | Binds fibers and resists chemicals |
Fillers & Additives | UV resistance, fire retardancy |
Common Fiberglass Rebar Types:
E-glass fibers: Standard, high strength
Vinyl ester resin: Excellent chemical resistance
Epoxy resin: Good bond strength, lower cost
Key Properties:
Non-corrosive and chemical-resistant
High tensile strength, but low ductility
Non-conductive and lighter weight (~1/4 the weight of steel)
| Property | Steel Rebar | Fiberglass Rebar (GFRP) |
Corrosion Resistance | Poor without coating | Excellent (non-metallic) |
Electrical Conductivity | Conductive | Non-conductive |
Weight | Heavy (density ~7.85 g/cm³) | Lightweight (~1.9 g/cm³) |
Tensile Strength | 400–600 MPa | 600–1200 MPa |
Flexural Strength | High | Moderate |
Thermal Expansion | Similar to concrete | Lower mismatch than steel |
In coastal or chemical environments, steel rebar corrodes, leading to spalling and structural failure. GFRP remains intact.
For electrical or MRI-sensitive facilities, GFRP’s non-conductive property is a major benefit.
Installation is easier with GFRP due to its low weight and resistance to cutting tools.
The materials used in rebar construction directly influence the performance and lifespan of reinforced concrete.
While steel offers ductility and universal code acceptance, fiberglass (GFRP) excels in lightweight, corrosion resistance, and durability in harsh conditions.
When planning your next construction project, ask not just “How strong is the rebar?”, but “What is the rebar made of — and how will that affect the structure in 10, 20, or 50 years?”
