Fiberglass structural profiles, also known as FRP (Fiber Reinforced Polymer) profiles, are advanced materials that combine fiberglass and resin to create strong, durable, and versatile structural components. These profiles are increasingly used in construction and engineering as a lightweight alternative to traditional materials like steel and wood. Unlike metals, fiberglass profiles resist corrosion, offer a high strength-to-weight ratio, and provide flexible design options. In this article, we’ll explain what fiberglass structural profiles are, how they’re made, and the different types used in various industries.
Fiberglass structural profiles are components made from Fiber Reinforced Polymer (FRP), which consists of fiberglass fibers embedded in a resin matrix. The fiberglass provides strength, while the resin binds the fibers, enhancing the material’s durability and stability. The profiles come in various shapes such as beams, angles, channels, I-beams, tubes, and flat sheets. These profiles are engineered to meet specific structural needs while providing long-lasting performance in harsh conditions.
The manufacturing of fiberglass structural profiles uses specialized techniques to achieve the desired mechanical properties and functional performance. The most common production methods are pultrusion, filament winding, and compression molding. Below is an overview of these processes:

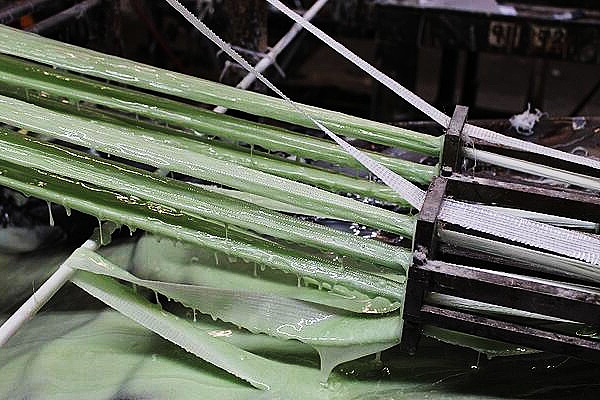

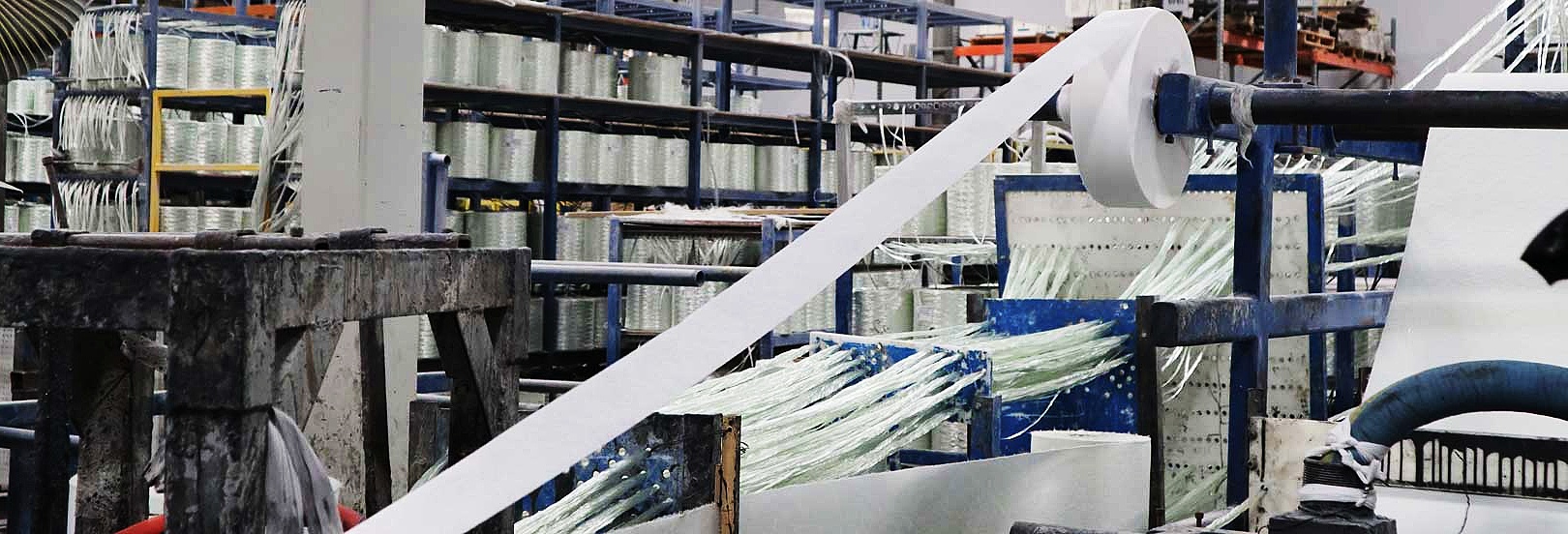

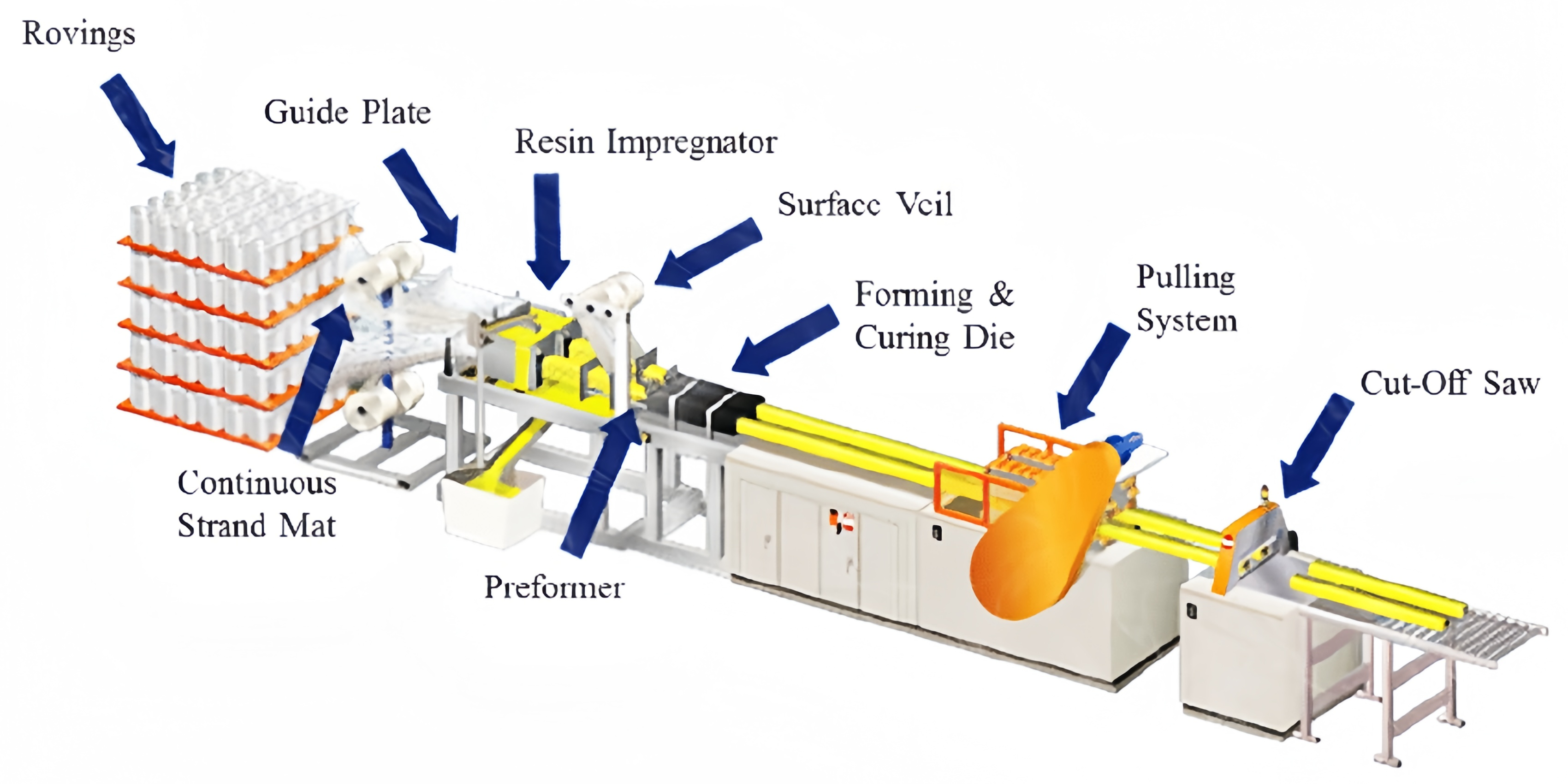

Pultrusion is a widely used method for producing fiberglass profiles with consistent cross-sections. In this process, continuous fiberglass strands are pulled through a resin bath and then through a heated die that shapes the material. As the fiberglass is saturated with resin and hardened under heat, it takes the desired form, such as I-beams, channels, or angles. Pultrusion is ideal for creating high-strength profiles with a high strength-to-weight ratio, typically used in structural reinforcements and frameworks.
Filament winding is used for cylindrical profiles like pipes, tanks, and tubes. In this method, continuous fiberglass filaments are wound around a rotating mandrel while being coated with resin. The fibers are wound in precise patterns to form the profile's desired thickness and shape. Afterward, the material is cured to solidify it. This method is ideal for producing large, hollow structures that need to endure internal pressure or mechanical stresses.
Compression molding is a process where a fiberglass-resin mix is placed into a mold, then compressed and heated to create the desired profile shape. This method is often used for profiles that require more intricate designs but is less common than pultrusion or filament winding.

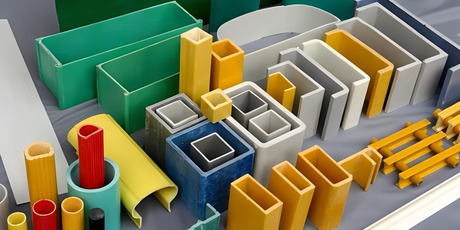

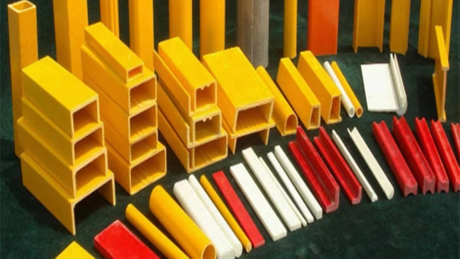

Fiberglass profiles come in various shapes, each designed to meet specific structural needs. Some of the most common types include:
· I-Beams: Used for supporting heavy loads while minimizing weight. These beams have a cross-section shaped like the letter "I."
· Angles: L-shaped profiles used for framing and structural support.
· Channels: U-shaped profiles, often used for building frames or as tracks for other systems.
· Tubes: Hollow fiberglass tubes used for lightweight yet strong applications such as railings, posts, and poles.
· Flat Sheets: Versatile sheets used for cladding, panels, or reinforcing surfaces.
· Custom Profiles: Manufacturers can create custom profiles to meet specific design requirements, including combinations of standard shapes or entirely unique designs.
Here are some key terms used when discussing fiberglass structural profiles:
· FRP (Fiber Reinforced Polymer): A composite material made of fiberglass and resin, known for its strength, durability, and resistance to corrosion.
· Rovings: Continuous strands of fiberglass used to reinforce the material during manufacturing.
· Resin: A polymer material that binds the fiberglass fibers together and solidifies the profile. Common types of resins include polyester, vinyl ester, and epoxy.
· Pultrusion Die: A mold used in the pultrusion process to shape continuous fiberglass profiles.
· Curing: The process of hardening the resin, either by heat or chemical reaction, to solidify the profile.
Fiberglass structural profiles offer an innovative and efficient solution for modern construction and engineering needs. Made from a combination of fiberglass and resin, these profiles provide a unique balance of strength, lightweight design, and durability. The key production methods—pultrusion, filament winding, and compression molding—allow manufacturers to produce a wide range of shapes, from beams and channels to tubes and custom profiles. Understanding how fiberglass profiles are made and their different applications helps engineers and designers take full advantage of their benefits in a variety of industries, from construction to infrastructure and beyond.
