FRP Composite Sheet Piles Technical Specifications | Material Properties & Performance

Understanding FRP Composite Sheet Piles

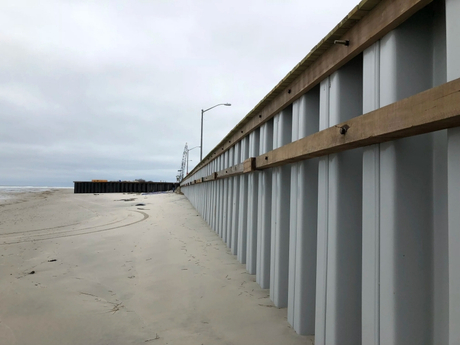

FRP (Fiberglass Reinforced Polymer) composite sheet piles are engineered structural profiles used in retaining walls, flood barriers, and marine infrastructure. These profiles are manufactured using high-strength glass fibers embedded in a thermosetting resin matrix, typically polyester, vinylester, or polyurethane. The resulting composite material is lightweight yet remarkably strong and resistant to harsh environmental conditions.

Key Technical Specifications of FRP Sheet Piles

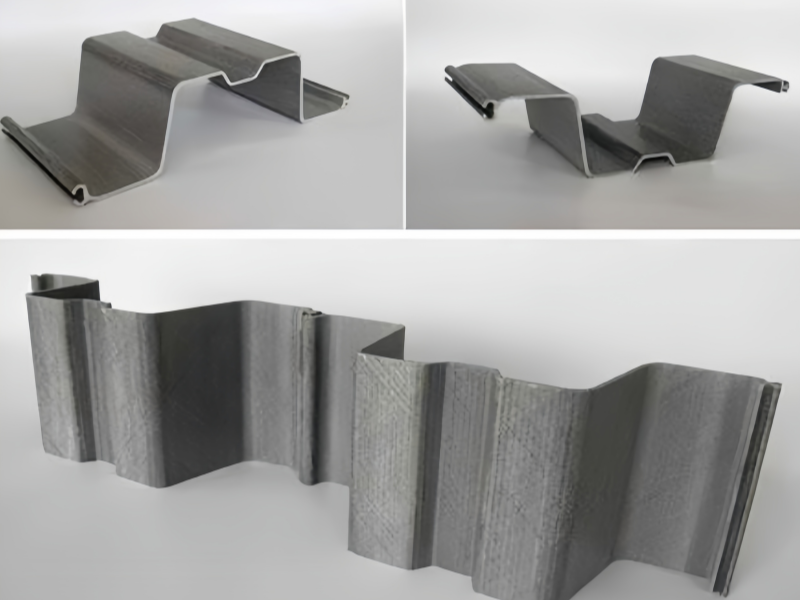

1. Dimensions and Profiles

FRP sheet piles are available in a variety of profiles and sizes tailored for specific applications. Typical dimensions include widths ranging from approximately 400 mm to over 700 mm, depths between 200 mm and 430 mm, and thicknesses from 4 mm up to 14 mm or more depending on load requirements.

2. Strength and Stiffness

Tensile Strength: FRP sheet piles commonly exhibit tensile strengths around 300–400 MPa, offering excellent load-bearing capacity.
Flexural Strength: Flexural strengths typically exceed 250 MPa, enabling resistance to bending and impact.
Modulus of Elasticity: Typical elastic modulus values for FRP sheet piles range between 2.0 to 2.5 million psi (13.8–17.2 GPa), providing necessary stiffness for retaining walls and flood defenses.

3. Weight and Handling

Due to the composite nature, FRP sheet piles weigh significantly less than steel piles of comparable size—often 60–70% lighter—facilitating easier transportation and installation, especially in remote or sensitive environments.

Manufacturing Process: Pultrusion

Pultrusion is the primary manufacturing technique for FRP sheet piles. It involves pulling continuous glass fiber rovings and mats through a resin bath, then through a heated die where the profile is formed and cured into its final shape. This process ensures:

Uniform cross-sectional dimensions
High fiber volume fraction for maximum strength
Consistent quality and durability

Material Properties Impacting Performance

Corrosion Resistance: FRP’s polymer matrix and glass fibers are inherently resistant to saltwater, chemicals, and UV radiation, significantly outperforming steel in marine environments.
Thermal Expansion: FRP sheet piles have a relatively low coefficient of thermal expansion (~28 µm/m·°C), ensuring dimensional stability with temperature fluctuations.
Water Absorption: Water absorption rates are minimal (usually less than 0.2% over 24 hours), which prevents swelling and degradation.
Impact Resistance: Although FRP composites are stiff, they maintain adequate impact toughness for construction use, often enhanced by fabric reinforcements.

Summary Table of Typical FRP Sheet Pile Specifications

Parameter	Typical Range/Value	Unit
Section Width	400 – 760	mm
Section Depth	200 – 430	mm
Thickness	4 – 14	mm
Tensile Strength	300 – 400	MPa
Flexural Strength	> 250	MPa
Modulus of Elasticity	13.8 – 17.2	GPa
Weight	5 – 30	kg/m
Thermal Expansion	~28	µm/m·°C
Water Absorption	< 0.2	% (24 hrs @ 25°C)

Conclusion

Understanding the technical specifications and material properties of FRP composite sheet piles is crucial for selecting the right product for your infrastructure project. Their impressive strength-to-weight ratio, corrosion resistance, and manufacturing consistency make them a superior choice for long-lasting and sustainable marine and civil engineering applications.
