Fiberglass Reinforced Plastic (FRP) panels are one of the most durable, hygienic, and cost-efficient wall covering materials in industries like food processing, healthcare, and commercial kitchens. However, panels alone aren’t enough—FRP trims (including division bars, end caps, and corner trims) are essential for sealing joints, preventing water penetration, and ensuring a professional finish.
Unfortunately, many installations fail because trims are poorly fitted or incorrectly sealed, leading to moisture damage, bacterial growth, and costly repairs.
This guide will walk you through FRP trim installation cost, step-by-step methods, and common mistakes to avoid, ensuring your project is done right the first time.
Related Resource: FRP Wall Panels Installation Guide – GTOFRP
Definition: FRP trim is the accessory used to join and finish FRP panels.
Types of FRP Trim:
Inside Corner Trim – for inner wall corners

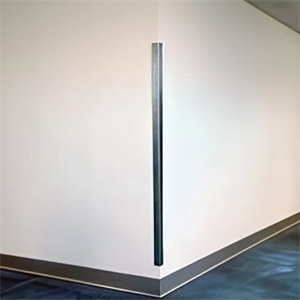

Outside Corner Trim – for outer wall edges
Division Bar (H-trim) – connects two panels side by side
End Cap Trim (J-trim) – finishes panel edges
Benefits:
Improves aesthetics with seamless joints
Provides moisture protection in wet environments
Enhances panel durability and hygiene compliance
| Item | Purpose |
|---|---|
| FRP panels & trims | Main materials |
| FRP-approved adhesive | Strong bonding |
| Sealant/caulk | Waterproofing |
| Utility knife | Cutting trims/panels |
| Straight edge & tape measure | Accuracy |
| Rollers | Removing air bubbles |
| Safety gear (gloves, goggles) | Protection |
Shop Now: GTOFRP FRP Trims and Accessories
Ensure the wall is dry, clean, and level.
Remove dust, oil, and previous coatings.
Measure wall dimensions.
Pre-cut trims to fit corners, edges, and panel joints.
Apply FRP adhesive beads on the back of trims.
Press trims firmly into position.
Slide FRP panels into trim grooves.
Use a roller to eliminate bubbles.
Apply silicone caulk along all seams.
Smooth sealant with a caulking tool.
✅ Pro Tip: For high-humidity areas (kitchens, restrooms), use antimicrobial sealants to prevent mold growth.
| Installation Type | DIY Cost (per sq. ft) | Contractor Cost (per sq. ft) |
|---|---|---|
| FRP Panel + Trim Materials | $2 – $3 | $2 – $3 |
| Adhesive & Sealant | $0.50 – $1 | $0.50 – $1 |
| Labor | $0 | $2 – $4 |
| Total | $2.5 – $4 | $5 – $8 |
Compare: FRP Panels Installation Cost Breakdown
❌ Using wrong adhesives → causes panels to peel.
❌ Skipping expansion gaps → panels warp with temperature changes.
❌ Uneven cutting of trims → poor alignment and gaps.
❌ Ignoring sealant application → leads to moisture seepage.
❌ Fast installation without curing time → adhesive may fail.
Cut trims with a fine-tooth blade for clean edges.
Seal joints twice in high-moisture areas.
Install trims before adhesives fully set, allowing adjustment.
Always check manufacturer specifications for adhesive compatibility.
Installing FRP trim isn’t just about aesthetics—it’s about ensuring long-term durability, hygiene, and reduced maintenance costs.
By following the right steps and avoiding common mistakes, you’ll achieve a professional finish that lasts for years.
Looking for high-quality FRP panels and trims? Explore GTOFRP FRP Trim & Panel Solutions for cost-effective, durable, and industry-approved products.
Q1: Can FRP trim be reused if removed?
A: Not recommended—once removed, trims often warp or crack.
Q2: How long does FRP trim installation take?
A: Small projects take a few hours; large commercial kitchens may require 1–2 days.
Q3: What adhesive should I use for FRP trims?
A: Always use FRP-approved adhesives—avoid generic construction glue.
Q4: Can I paint FRP trims?
A: Yes, with epoxy or urethane-based paints, but most trims are pre-finished.
Q5: How much extra trim should I order?
A: Order 5–10% more than calculated to cover mistakes and adjustments.
