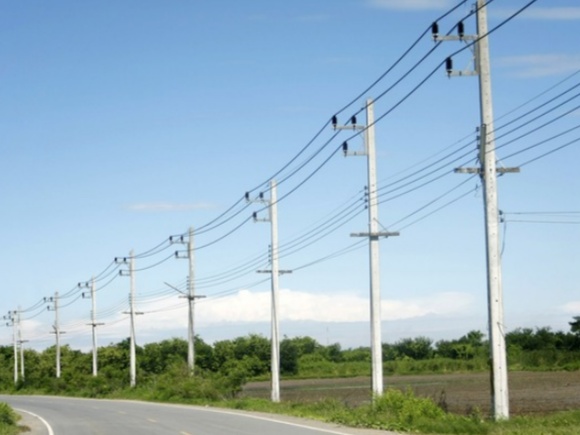

FRP utility poles are structural poles made from fiber-reinforced polymer—usually glass fibers set within a thermoset resin. They're engineered to carry vertical and lateral loads for power distribution, sub-transmission, lighting, and telecom. In practice, you'll also hear them called fiberglass utility poles or composite utility poles.
Compared to wood, steel, or concrete, FRP utility poles are much lighter, resist corrosion and rot, don't attract insects, and provide inherent electrical insulation. In coastal salt air, deserts, and wildfire corridors, that combination improves reliability while reducing lifetime maintenance. Recent guidance cites service lifetimes for composite poles on the order of ~80 years, depending on design and environment.
The "F" in FRP is the reinforcement (often E-glass). The polymer matrix (often polyester or vinyl ester) transfers loads between fibers and protects them from the environment. By varying fiber orientation (hoop, axial, ± angles) and laminate stacking, designers tune stiffness, strength, and ductility for specific wind/ice load trees and hardware patterns. Technical specifications for FRP poles reference reinforced thermosetting plastic construction.
Common processes include filament winding (controlled fiber angles for axial/hoop strength), pultrusion (constant cross-section members such as crossarms), and centrifugal/spun casting for round tapered shafts. Meanwhile, GTOFRP utilizes advanced filament winding technology to manufacture high-quality FRP poles in various dimensions, catering to diverse customer requirements.
A UV-resistant gel-coat or veil is applied to resist weathering and to preserve long-term mechanical properties. Many utility specs call out color-stable finishes that also aid visual inspections over decades. (To explore such UV-stabilized finishes and high-performance FRP pole solutions, visit the GTOFRP FRP Poles product page)
FRP utility poles achieve a high strength-to-weight ratio, meaning crews can handle longer poles with lighter equipment, sometimes eliminating cranes on remote rights-of-way. Utility specifications often equate required FRP strength to wood pole classes for NESC compliance, while accounting for different safety factors.
The composite laminate is non-conductive, which helps with step and touch potential management and can reduce the risk of stray current corrosion of nearby assets. It also opens options for live-line work practices and compact corridor designs when engineered appropriately.
Unlike steel, FRP won't rust; unlike wood, it won't rot, absorb moisture, or attract insects. In coastal and industrial atmospheres—where salt and chemicals accelerate degradation—FRP's inertness becomes a major OPEX advantage.
When procuring FRP utility poles, specify compliance with ASTM D4923 (Standard Specification for Reinforced Thermosetting Plastic Poles). This standard covers performance parameters and helps ensure consistent, testable quality for outdoor lighting, power, and telecom structures.
Design should meet the National Electrical Safety Code (NESC) loadings and clearances. Many utilities and public agencies reference USDA Rural Utilities Service (RUS) bulletins and the eCFR framework to guide acceptable materials and methods for financed projects.
Owner standards typically require mechanical proof testing, dimensional checks, finish/UV requirements, and hardware interface verification before acceptance. (If you need templates, reach out to engineering.) For a sense of how utilities codify FRP equivalency to wood classes, see public specifications such as those from Snohomish PUD.
Published guidance and agency reports often cite ~80 years for composite/steel poles, ~60 years for concrete, and ~30–50 years for wood (with wide variance due to treatment and environment). FRP’s resistance to biological attack and corrosion is a key driver of this longevity.
Composite laminates are engineered for cyclic loads (wind gusts, conductor gallop) and long-term deflection (creep). UV-stable veils and coatings reduce surface chalking and preserve properties during decades of exposure. Independent assessments have tracked field performance of commercial composite poles supporting promising durability and economics.
| Feature | FRP Utility Poles | Wood | Steel | Concrete |
|---|---|---|---|---|
| Weight | Very light; easier handling | Light | Moderate | Heavy |
| Corrosion/Rot | No rot; corrosion-proof | Preservative-dependent | Corrodes without coatings | No rust; can spall |
| Electrical | Non-conductive | Non-conductive | Conductive | Semi-conductive |
| Install Speed | Fast (small crews/equipment) | Fast | Moderate | Slow |
| Maintenance | Low | Medium | Medium-high (coatings) | Medium |
| Typical Life | ~80 yrs (design dependent) | 30–50 yrs | ~80 yrs | ~60 yrs |
| Best Environments | Coastal, wildfire, remote sites | Temperate | Urban/tall structures | Heavy loads/urban |
Lifetimes summarized from public guidance; always verify per site and spec.
Fire, wind, ice, and seismic performance
FRP poles can be engineered to flex rather than fracture, with high specific strength that supports severe wind and ice maps. Utilities in wildfire-prone regions have turned to composites and coated steel for greater fire resilience under mitigation plans.
Up-front, FRP utility poles can cost more than wood. But total cost often drops when you add: fewer truck rolls for corrosion/rot issues, lighter logistics, longer life, and fewer outages in harsh climates. Studies and utility pilots point to compelling lifetime economics, especially where access is difficult or corrosion is aggressive.
Compare installed cost (crane vs. line truck vs. helicopter).
Include inspection/repair cycles over 30–80 years.
Model coastal/wildfire scenarios with failure costs.
Specify ASTM D4923 compliance and NESC equivalency to wood classes to streamline approvals.
Standard poles for 12–69 kV networks in coastal or high-wind regions, with tapered FRP shafts and galvanized or composite crossarms.
Non-conductive, RF-friendly housings with internal raceways for power, fiber, and small-cell equipment—plus clean aesthetics for municipal streetscapes.
FRP excels where salt fog, abrasive dust, and heat challenge metals and wood. Utilities have documented wildfire mitigation strategies that include composite replacement of wood poles in high-risk zones.
Define pole height/taper and equivalent wood class or required tip/base moments.
Apply local NESC wind/ice maps and exposure categories.
Confirm hardware compatibility (through-bolts, steps, grounding systems, crossarms, arms brackets).
Call out finish color and UV-stabilized coatings.
Select embedment depths or foundations per soil report; FRP can reduce equipment size during setting. Verify guying, anchors, and groundline protection to meet owner standards and RUS/utility guides.
FRP utility poles combine high strength-to-weight, non-conductivity, and corrosion resistance with long service life, making them a strong choice for coastal, wildfire, and remote projects. When you specify ASTM D4923, align to NESC loads, and follow utility/RUS guidance, you get predictable performance and easier approvals.
