For decades, steel water tanks dominated industrial and municipal water storage.

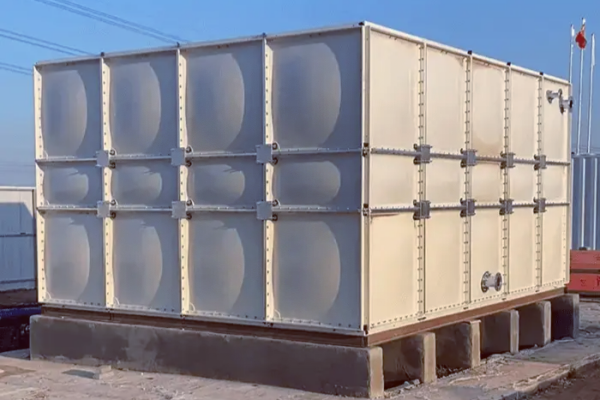

However, the emergence of FRP panel tanks, built from SMC molded fiberglass-reinforced panels, has changed how modern infrastructure handles large-volume water systems.
| Material | Typical Use | Key Feature |
|---|---|---|
| Steel Tanks | Firefighting, industrial plants | High strength, but corrosion-prone |
| FRP Panel Tanks (SMC) | Building, municipal, HVAC | Lightweight, modular, corrosion-free |
See full FRP panel tank specifications →
The average installed cost per liter in 2025:
| Tank Type | Price per Liter | Common Capacity | Installation Cost Range |
|---|---|---|---|
| FRP (SMC Panel Type) | $0.15 – $0.35 | 10,000–500,000L | Moderate |
| Carbon Steel Tank | $0.20 – $0.45 | 10,000–1,000,000L | High |
| Stainless Steel Tank | $0.40 – $0.80 | 5,000–200,000L | High |
While FRP tanks may have a slightly higher upfront material cost, their installation and maintenance expenses are 40–60% lower over time.
View FRP water tank cost breakdown →
Steel tanks require coating, welding, and corrosion inspections every 3–5 years.
By contrast, FRP panel tanks are maintenance-free for up to a decade, thanks to their non-reactive resin and stainless hardware.
| Lifecycle Aspect | FRP Tank | Steel Tank |
|---|---|---|
| Painting / Coating | None | Every 4–5 years |
| Corrosion Repair | Rare | Frequent |
| Service Life | 25–30 years | 15–20 years |
FRP panel tanks use food-grade unsaturated polyester resin and UV-stabilized gel coats, preventing rust, scaling, and microbial contamination.
No internal coating needed — ideal for potable water.
Non-reactive surface prevents metallic taste or discoloration.
Perfect for coastal or chemical environments.
Steel tanks, even when epoxy-coated, eventually develop rust at joints or weld seams.
FRP's smooth interior surfaces reduce sediment buildup and bacterial adhesion.
This ensures compliance with ISO 9001, WRAS, and FDA drinking water standards.
Read more about FRP tank materials and certifications →
While steel has higher tensile strength, FRP compensates with smart structural design:
| Property | FRP (SMC Panel) | Steel |
|---|---|---|
| Weight-to-Strength Ratio | Excellent | Heavy |
| Installation Method | Bolt assembly | Welding |
| Flexibility | Modular, replaceable panels | Rigid, fixed structure |
| Load Capacity | Up to 100kN/m² | Higher, but heavier |
The modular design means damaged panels can be replaced individually, avoiding full-tank replacement — a key advantage in long-term maintenance.
See modular FRP tank installation guide →
FRP Panel Tanks:
Delivered as lightweight panels
Assembled on-site using stainless bolts and sealants
Require no heavy lifting cranes
Can be installed on concrete or steel bases
Steel Tanks:
Require cutting, welding, and post-coating
Need heavy equipment and higher labor cost
Downtime during repainting and inspection
Typical 100m³ FRP tank: 2–3 days installation
Typical 100m³ steel tank: 5–7 days installation
check frp tank installation accessories →
FRP's non-corrosive and lightweight nature significantly lowers energy use during transport and installation.
Furthermore, many manufacturers now use recyclable fiberglass composites, aligning with green building standards.
| Criteria | FRP Tank | Steel Tank | Winner |
|---|---|---|---|
| Initial Cost | Slightly Higher | Moderate | – |
| Maintenance | Minimal | Frequent | FRP |
| Corrosion Resistance | Excellent | Moderate | FRP |
| Hygiene for Potable Water | Excellent | Requires Coating | FRP |
| Installation Time | 2–3 days | 5–7 days | FRP |
| Expected Lifespan | 25–30 years | 15–20 years | FRP |
In 2025, FRP panel water tanks outperform steel tanks in nearly every metric that matters for long-term ROI:
corrosion resistance, water safety, installation time, and lifecycle cost.
For engineers and procurement teams, FRP panel systems represent a future-proof, hygienic, and maintenance-free solution for modern infrastructure.
