How to Cut and Bend Fiberglass Rebar Correctly: Professional Installation Guide

1. Why Fiberglass Rebar Needs Special Handling

Fiberglass rebar is made from glass fibers bound in epoxy resin, giving it strength but making it non-ductile — it cannot deform without breaking.
Unlike steel, FRP rebar:

• Can't be bent cold on site

• Requires abrasive or diamond blades for clean cuts

• Must be shaped during production (if curved bars are needed)

These differences affect both installation workflow and cost estimation in bridge decks, tunnels, and marine projects.

 If your design includes curves or hooks, consider using pre-shaped GFRP bars from [GTOFRP Custom Rebar Solutions].

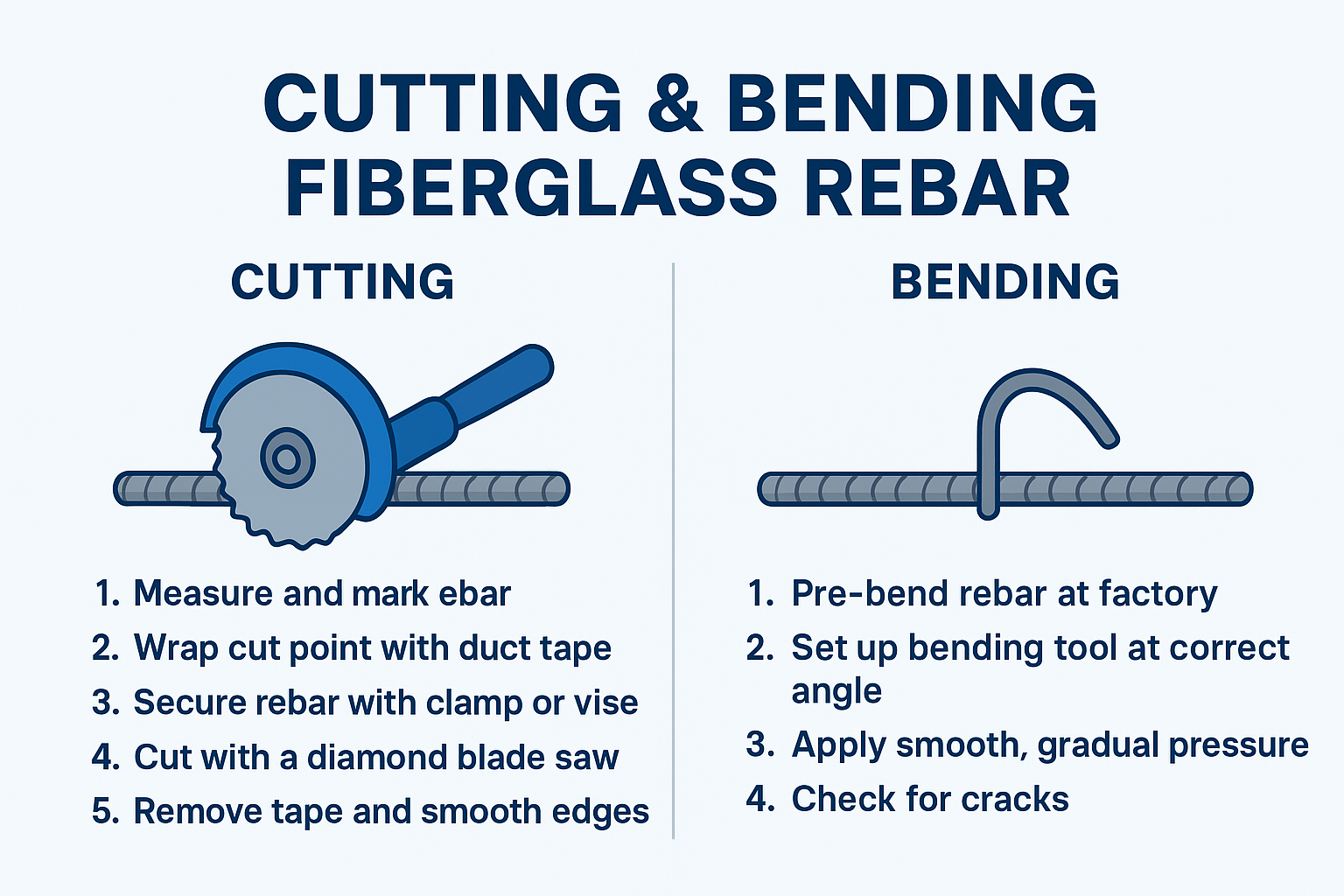

2. How to Cut Fiberglass Rebar — Step by Step

Recommended Tools

Cutting Procedure

1. Measure & Mark – Use a permanent marker for precision.

2. Wrap the mark with duct tape to prevent splintering.

3. Secure the rebar with a vise or clamp to reduce vibration.

4. Cut slowly with a diamond or carbide blade — avoid overheating.

5. Cool the blade between cuts using air or water spray.

6. Lightly sand edges for smoothness.

✅ For consistent, dust-free results, consider GTOFRP pre-cut fiberglass rebar supplied to custom project lengths.

3. Bending Fiberglass Rebar — What's Actually Possible

On-site Bending: Not Recommended

Fiberglass rebar cannot be bent manually once cured.
Attempting to use heat guns or torches causes resin degradation and hidden cracks.

Factory Pre-Bending (Preferred Method)

• Bars are bent during the pultrusion process, before full curing.

• Maintains continuous fiber alignment and tensile strength.

• Ideal for stirrups, hooks, and custom-radius bends.

Order factory-bent FRP bars through [GTOFRP Engineering Support] for bridges, seawalls, and tunnel reinforcement.

4. Safety Guidelines

Fiberglass dust and splinters can irritate eyes, lungs, and skin. Always use:

• Safety glasses or face shield

• N95 respirator

• Gloves (cut-resistant)

• Long sleeves to prevent irritation

• Wet cutting or vacuum systems to control dust

⚠️ Dispose of fiber dust properly according to local environmental regulations.

5. Cost and Installation Efficiency

Proper handling of fiberglass rebar lowers project downtime and material waste.
While diamond blades and wet saws add a small upfront cost, they can save significant time and replacement expenses.

Projects using GTOFRP precision-cut and pre-shaped bars reported up to 20% reduction in on-site rework.

6. Common Installation Mistakes

• Attempting to bend GFRP rebar on site.

• Cutting without securing the bar (causes splintering).

• Using steel-only blades (risking fiber cracking).

• Ignoring dust safety protocols.

• Applying open flame for heat bending.

Each of these errors shortens the product's lifespan and weakens its bond with concrete.

7. Practical Applications

Properly cut and shaped fiberglass rebar is used in:

• Bridge decks and coastal structures

• Road barriers and tunnel linings

• Marine docks and retaining walls

• Industrial flooring and chemical facilities

For detailed specifications, visit [GTOFRP Fiberglass Rebar Product Page].

8. FAQs

Q1. Can I cut fiberglass rebar with a regular grinder?
Yes, if fitted with a diamond or carbide cutting wheel and used gently.

Q2. Can fiberglass rebar be bent after curing?
No. Only pre-bent shapes produced during manufacturing maintain strength.

Q3. What's the best cutting speed?
Low RPM — avoid overheating the resin.

Q4. Is wet cutting required?
Recommended. It minimizes dust and improves edge quality.

Q5. Is FRP rebar more expensive to handle than steel?
Slightly higher per-unit cost, but saves labor and prevents corrosion repairs long term.

9. Conclusion

Cutting and bending fiberglass rebar correctly is essential for both structural reliability and long-term ROI.
Use proper tools, follow safety guidelines, and rely on factory-shaped GFRP components from GTOFRP for professional-quality results.

Smart preparation minimizes material loss, improves bond performance, and ensures every reinforcement meets engineering standards.
