Pultrusion Process in FRP Rebar Production Line: Technology, Machines, and Innovations

Pultrusion Process in FRP Rebar Production Line

1️⃣ Overview: Why Pultrusion Matters

Pultrusion is a continuous manufacturing process for producing fiber-reinforced polymer (FRP) profiles such as rebar, rods, and structural shapes.
Unlike batch molding or filament winding, pultrusion offers:

• High consistency in strength and geometry

• Continuous operation for large-scale production

• Cost efficiency through automation

See GTOFRP's advanced FRP rebar systems and production technology — [GTOFRP Rebar Page]

2️⃣ Step-by-Step Pultrusion Workflow

1. Fiber Impregnation
   Continuous glass or basalt fibers are drawn through a resin bath containing epoxy, vinyl ester, or polyester resin.
   The goal is to achieve complete wet-out of the fibers while maintaining optimal resin-to-fiber ratios.

2. Resin Control & Pre-Forming
   The impregnated fibers are guided through pre-forming fixtures to align and shape the bundle before entering the heated die.
   Proper alignment ensures maximum tensile strength along the rebar's axis.

3. Pultrusion Die Heating
   The heart of the process — a precision steel die heated to 120–180°C cures the resin while shaping the composite into a solid, rigid rebar.
   Die design determines final surface texture and diameter tolerance.

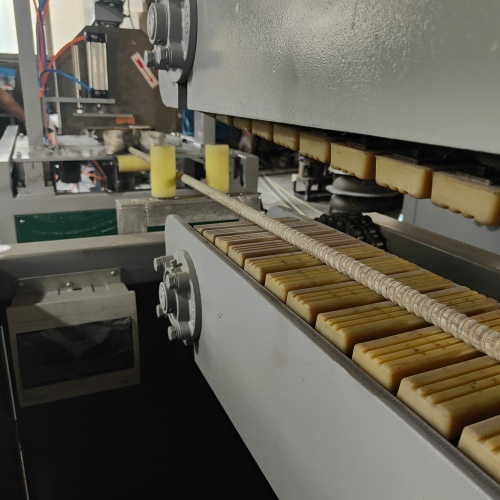

4. Pulling & Cutting System
   Hydraulic or caterpillar pullers continuously draw the cured product, which is then cut to specified lengths using diamond or abrasive saws.

5. Surface Treatment
   Rebar may receive a sand coating or helical wrapping to improve bond strength with concrete.

Explore high-efficiency FRP pultrusion machines and automation modules — [GTOFRP Machines Page]

3️⃣ Key Equipment in a Composite Rebar Production Line

Modern lines integrate PLC automation, temperature feedback systems, and real-time viscosity monitoring, ensuring every meter of FRP rebar meets performance standards.

4️⃣ Material Science: The Core of Pultrusion Quality

The combination of E-glass fibers and vinyl ester resin remains the industry standard for GFRP rebar, balancing mechanical strength and chemical resistance.
Recent developments include:

• Hybrid fiber reinforcements (glass + basalt) for added stiffness

• Nanoparticle-modified resins for higher heat distortion temperatures

• UV-resistant coatings for outdoor and marine environments

Learn more about GTOFRP composite material innovations —[GTOFRP Materials Page]

5️⃣ Cost Optimization & Automation Trends (2025)

Automation is reshaping the economics of FRP rebar manufacturing:

• Robotic pulling systems reduce labor cost by up to 40%

• Closed-loop curing control minimizes resin waste

• Inline quality sensors detect fiber misalignment or porosity in real-time

Average investment for a mid-scale pultrusion line:

• $150,000–$300,000 for basic setups

• $500,000+ for fully automated composite rebar lines

However, ROI is typically achieved within 18–24 months due to high output efficiency and low scrap rates.

6️⃣ Quality Control and Testing

FRP rebar must comply with standards such as ACI 440.1R, ASTM D7205, and CSA S806.
Common QC procedures include:

• Tensile and shear strength tests

• Fiber volume fraction analysis

• Cure degree verification (DSC)

• Bond pull-out tests

See how GTOFRP ensures ASTM-compliant FRP rebar manufacturing — [GTOFRP Quality Control Page]

7️⃣ Future of Pultrusion Technology

By 2025–2030, expect:

• AI-driven process control for predictive maintenance

• Smart resins with built-in sensors

• Sustainable fiber alternatives, including basalt and recycled glass

• Modular production lines for quick product switching

Conclusion

Pultrusion technology remains the most efficient, scalable, and precise process for manufacturing FRP rebar.
As automation, AI, and advanced resin systems evolve, composite rebar production lines will deliver even higher consistency and cost competitiveness — making GFRP the future standard for reinforced concrete infrastructure.
