In today's composite manufacturing industry, pultrusion technology stands as the most reliable and efficient method for producing Fiber-Reinforced Polymer (FRP) profiles with constant cross-sections and high mechanical strength.
For more than a decade, GTOFRP has specialized in pultrusion machinery design and manufacturing, offering advanced automation, quality control, and energy efficiency that meet industrial and infrastructure standards worldwide.
This article outlines the pultrusion process, machine configuration, and production efficiency advantages, explaining why GTOFRP's technology is trusted by engineers, fabricators, and OEM manufacturers globally.
The pultrusion process is a continuous manufacturing technique that converts fiber reinforcements and resin systems into solid, uniform FRP profiles.

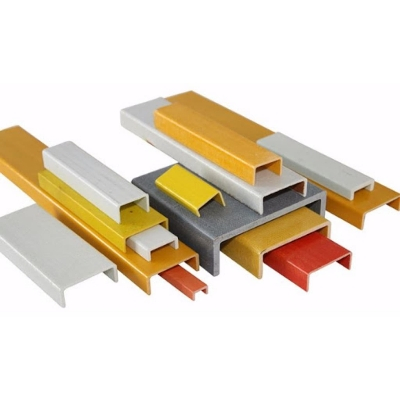

Fiberglass roving or mat is pulled through a resin bath, shaped in a heated die, and then cured into a rigid composite. The result is a structurally strong, lightweight, and corrosion-resistant profile ideal for beams, channels, tubes, and gratings.
Fiber Feeding and Alignment – Continuous glass or carbon fibers are guided into the system under tension for uniform load distribution.
Resin Impregnation – Fibers pass through a resin bath or injection chamber, coating each strand with thermosetting resin (polyester, vinyl ester, or epoxy).
Forming and Curing – The wet fiber bundle enters a heated steel die, where it hardens into the final shape.
Pulling System – A hydraulic or caterpillar pulling unit maintains consistent speed and pressure.
Cutting and Finishing – The cured FRP profile is automatically cut to length and prepared for surface treatment or machining.
This continuous method ensures uniform mechanical strength, smooth finish, and dimensional accuracy, suitable for structural and industrial applications.
GTOFRP designs and manufactures high-precision FRP pultrusion machines that integrate advanced automation, intelligent temperature control, and digital monitoring.
| System Component | Description |
|---|---|
| Fiber Feeding Rack | Holds multiple rolls of roving for continuous feeding. |
| Resin Impregnation Unit | Adjustable resin bath with temperature control for consistent wet-out. |
| Forming and Heating Die | Stainless-steel molds with precision heating zones. |
| Pulling Mechanism | Dual-chain or hydraulic traction for uniform pulling force. |
| Cutting Saw System | Servo-driven automatic cutter for exact profile lengths. |
| Control Cabinet | PLC system with touchscreen interface and data monitoring. |
Every FRP pultrusion machine is engineered for stability, low energy consumption, and operator safety. For detailed specifications and customization options, visit the Pultrusion Machine Product Page.
The choice of reinforcement and resin directly affects the performance of FRP profiles.
| Material Type | Purpose | Advantages |
|---|---|---|
| E-glass Fiber | General structural use | Cost-effective and corrosion-resistant |
| Carbon Fiber | High-performance applications | High stiffness and tensile strength |
| Vinyl Ester Resin | Chemical resistance | Ideal for marine and industrial settings |
| Epoxy Resin | Structural composites | Excellent adhesion and fatigue resistance |
GTOFRP's machines support multi-resin compatibility, allowing clients to switch between different formulations depending on the product's final application.
Unlike molding or extrusion, pultrusion is a non-stop process that runs 24/7 with minimal supervision, ideal for high-volume FRP production.
GTOFRP machines maintain ±0.3 mm tolerance across large runs, ensuring precise fit for modular installations such as ladders, grates, or structural frames.
The advanced heating system uses zonal temperature control to reduce power consumption by up to 25% compared to traditional pultrusion setups.
Optimized resin feeding and automatic tension control minimize material loss, keeping the yield rate above 98%.
All machines feature PLC integration with real-time process monitoring. Operators can record curing temperatures, line speeds, and pull forces for traceable production quality.
For engineers aiming to upgrade production lines, GTOFRP's Pultrusion Machine Page provides technical configurations and consultation services.
| Process | Production Type | Advantages | Limitations |
|---|---|---|---|
| Pultrusion | Continuous | High strength, constant profile, low labor | Limited to constant cross-sections |
| Filament Winding | Rotational | Ideal for pressure vessels | Complex setup |
| Resin Transfer Molding (RTM) | Batch | Complex shapes | Higher cost |
| Hand Lay-Up | Manual | Simple tools | Low precision, slow output |
Among these, pultrusion offers the best balance between automation and structural integrity, especially for linear structural components.
GTOFRP's pultruded products are widely used in:
Civil Engineering: Bridge decks, gratings, railings
Electrical Systems: Non-conductive ladders, support structures
Chemical Plants: Corrosion-proof platforms and frames
Marine Structures: Jetties, walkways, and antenna supports
Transportation: Lightweight structural parts and modular assemblies
To browse GTOFRP's full catalog of FRP structures, visit the Composite Profiles Section.
Each production batch undergoes mechanical testing according to ASTM D638, D790, and EN 13706 standards.
Testing includes:
Tensile and flexural strength verification
Dimensional accuracy checks
Resin content analysis
Thermal stability testing
GTOFRP's quality management system ensures every pultruded FRP profile meets international engineering requirements before export.
A Middle Eastern construction company upgraded its manual pultrusion setup with GTOFRP automated machines.
Results achieved:
30% increase in production speed
Reduced energy cost by 22%
Consistent surface finish and dimensional stability
The case illustrates how modern pultrusion systems enhance throughput and reliability in composite production.
| Key Advantage | GTOFRP Pultrusion Technology |
|---|---|
| Continuous Production | ✔ 24-hour operation |
| Dimensional Accuracy | ✔ ±0.3 mm |
| Energy Saving | ✔ Up to 25% reduction |
| Multi-Material Compatibility | ✔ Glass, carbon, aramid |
| Automation | ✔ PLC-based smart control |
| After-Sales Support | ✔ Global engineering service |
1. What is a pultrusion machine used for?
It's designed for continuous production of FRP profiles, pulling reinforced fibers through resin and heated dies to form strong composite shapes.
2. What is the production speed of GTOFRP's pultrusion machine?
Typical line speeds range from 0.2 to 1.5 meters per minute, depending on product type and resin system.
3. Can the machine produce different shapes?
Yes, GTOFRP's systems support multiple die sets for I-beams, channels, square tubes, and custom profiles.
4. What resins are compatible with pultrusion?
Polyester, vinyl ester, epoxy, and phenolic resins can all be used depending on environmental exposure.
5. How is process temperature controlled?
Each die zone has an independent heating element monitored via the PLC for precision curing.
6. How to request a quote or technical consultation?
Visit GTOFRP's Pultrusion Equipment Page or contact the Technical Support Team for detailed machine configurations and quotations.
The pultrusion process has evolved into a cornerstone of modern FRP manufacturing. With GTOFRP's engineering expertise and advanced automation, manufacturers gain consistent quality, reduced costs, and superior mechanical performance.
From bridges to industrial platforms, pultruded profiles produced on GTOFRP's FRP pultrusion machines are helping industries achieve stronger, lighter, and more sustainable solutions.
For complete specifications and machinery details, visit the Pultrusion Machine Product Page or contact GTOFRP's Sales Engineers for a tailored production solution.
