FRP rebar, also called composite rebar, refers to a category of non-metallic reinforcement bars produced using continuous fibers and thermosetting resin. Over the past decade, its use has accelerated across infrastructure, transportation, marine, and industrial projects due to its corrosion resistance and long-term structural stability.
Concrete degradation caused by steel corrosion remains one of the most expensive maintenance problems in global construction. FRP rebar directly solves this issue, eliminating rust-induced cracking and extending service life in harsh environments.
FRP rebar consists of three core components:
Fibers are the load-bearing material. Common choices include:
E-glass fiber
Basalt fiber
Carbon fiber
The selection affects strength, stiffness, durability, and cost.
Thermosetting resin binds the fibers and protects them from chemical exposure. Typical systems include:
Vinyl ester
Epoxy
Polyester
The bar is pultruded into a solid core and then coated or wrapped for bonding performance.
FRP rebar is completely non-metallic, non-corrosive, lightweight, and stable under environmental variation.
FRP rebar is not a single product but a broad category. Major types include:
The most widely used option. Offers high tensile strength and cost efficiency. Suitable for bridges, foundations, and marine structures.
Uses basalt fiber derived from volcanic rock. Exhibits stable corrosion resistance and strong performance in thermal variation.
High-strength and high-stiffness option used in special engineering structures such as seismic upgrades, defense facilities, and precision laboratories.
Combines fibers for balanced performance, though less common.
Each type varies in cost, stiffness, and application suitability.
FRP rebar performance is defined by fiber alignment and resin curing consistency. Key properties include:
FRP rebar generally provides tensile strength several times that of carbon steel due to the continuous fiber structure.
Lower than steel for fiberglass and basalt, but significantly higher for carbon fiber rebar.
Fully resistant to chloride, alkaline, and moisture environments.
Achieved through sand-coated or ribbed surface structures, providing mechanical interlock.
Non-conductive and non-magnetic, making it suitable for buildings sensitive to interference.
FRP rebar is not designed to replace steel in every situation, but the engineering differences are clear when projects require corrosion resistance, long service life, or low weight. This section provides a direct, technical comparison.
FRP rebar delivers high tensile strength at a fraction of the weight of steel. This improves handling efficiency, reduces transportation loads, and allows smaller equipment on congested jobsites. For multi-story or difficult-access projects, the lighter weight makes installation significantly easier.
Steel reinforcement in concrete corrodes in the presence of chlorides, moisture, and alkaline conditions. Rust expansion leads to cracking, delamination, and service-life reduction.
FRP rebar does not corrode, eliminating rust-induced concrete spalling and extending structural durability in marine, coastal, and industrial environments.
The long-term degradation of steel reinforcement is one of the primary causes of infrastructure maintenance costs. FRP rebar maintains its structural properties in high-salt, high-humidity, and chemically aggressive areas, providing stable performance over extended service periods.
Steel reinforcement can distort magnetic fields and conduct electricity in sensitive environments.
FRP rebar is electrically non-conductive and non-magnetic, making it suitable for MRI rooms, laboratories, data centers, military communication stations, and industrial facilities requiring electromagnetic neutrality.
FRP rebar has a different thermal expansion profile than steel. When correctly designed with proper concrete cover and spacing, it performs reliably in cold regions, freeze–thaw cycles, and high-temperature zones.
Initial material pricing for FRP may be comparable to or slightly higher than steel depending on diameter and fiber type.
However, lifecycle cost is significantly lower in corrosive environments because repair cycles, rust treatment, and structural rehabilitation are greatly reduced.
FRP rebar is governed by several engineering standards used worldwide for structural design, testing, and material qualification.
The core U.S. manufacturing standard for solid, sand-coated FRP bars. It defines:
Tensile strength
Modulus of elasticity
Fiber content
Surface deformation requirements
Quality-control testing
ACI 440 documents provide design guidelines for using FRP reinforcement in concrete. They cover:
Structural behavior
Bonding
Crack control
Fire considerations
Anchorage and development length
ISO documents cover:
Composite pultrusion
Material characterization
Accelerated aging tests
Depending on the project location, additional approvals may apply, such as:
CSA (Canada)
TR specifications (EU infrastructure projects)
Standards continue to evolve as FRP rebar use expands across global markets.
Composite rebar is produced in a range of diameters used across infrastructure, industrial, and civil construction. Although exact parameters depend on the manufacturer, the typical technical scope includes:
Common diameters include:
6 mm
8 mm
10 mm
12 mm
14 mm
16 mm
Larger diameters upon request
GTOFRP™ also supports custom diameter requirements for OEM orders.
Depending on fiber type and resin system:
Fiberglass: high tensile strength suitable for most structural uses
Basalt: strong performance with excellent thermal stability
Carbon: extremely high tensile strength for specialized projects
Varies by fiber:
Fiberglass: lower modulus compared to steel
Basalt: slightly higher than fiberglass
Carbon: significantly higher, approaching steel-like stiffness
FRP rebar is substantially lighter than steel, improving jobsite handling and reducing shipping loads.
Sand-coated for high-bond applications
Helical rib patterns
Wrapped surface treatments
These textures ensure reliable mechanical interlock with concrete.
FRP rebar relies on physical surface deformation for anchorage, as it cannot rely on chemical adhesion alone. Major bonding systems include:
A coarse, fully coated texture that increases bond strength by mechanical interlock. Recommended for structural applications.
Continuous fiber wraps create spiral ridges that improve pull-out resistance.
Used for specialized engineering requirements or prefabricated precast elements.
Bond performance is a major factor when selecting the correct FRP rebar type for structural design.
FRP rebar is widely used across sectors requiring corrosion resistance, long service life, or lightweight reinforcement.
Sea walls
Port platforms
Retaining structures
Offshore walkways
FRP rebar eliminates chloride-induced corrosion, making it ideal for saltwater exposure.
Bridge decks
Barriers
Parapets
Approach slabs
Retaining walls
Reduces maintenance caused by deicing salts.
FRP rebar withstands chemical environments that degrade steel.
High humidity and limited maintenance access make corrosion-resistant reinforcement essential.
Used for:
Footings
Slabs
Retaining walls
Driveways
Lightweight handling benefits small and large projects alike.
Using FRP rebar in structural design requires understanding material-specific behavior.
Due to lower modulus (for fiberglass and basalt), engineers must optimize bar spacing and diameter selection.
Anchorage values differ from steel. Sand-coated surfaces improve development performance.
Standard cover depth is typically maintained, though fire-related requirements must follow ACI recommendations.
FRP rebar cannot be bent on-site. Pre-bent shapes must be manufactured directly from the factory.
Design must account for sustained high temperatures. In standard civil conditions, performance remains stable with proper cover.

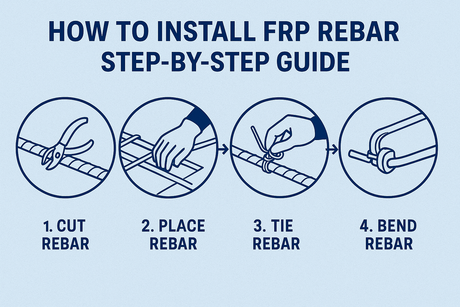

Composite rebar installations follow practical, jobsite-focused rules.
Lightweight, easy to transport, does not require heavy lifting equipment.
Performed using diamond blades or abrasive wheels. No heat cutting.
Uses plastic ties or compatible accessories; metal tying wire is acceptable in most applications.
Follow project design drawings; FRP bars do not require rust-protection clearance.
Keep away from direct flame and avoid prolonged UV exposure before installation.
For deeper installation details, see the internal link in the FRP Rebar Installation Guide (cluster page).
FRP rebar is produced through a continuous pultrusion process, designed for stable mechanical performance and consistent fiber alignment.
Continuous fiberglass, basalt, or carbon fibers are placed on creels. Fiber alignment is critical for tensile performance, so tension control is monitored throughout the line.
Fibers are pulled through a thermoset resin bath. Common systems include:
Vinyl ester (excellent corrosion resistance)
Epoxy (high chemical stability)
Polyester (economic option for non-structural uses)
Resin type influences durability, chemical resistance, and service temperature.
Fibers enter a heated forming die that shapes the final bar profile. Temperature and pulling speed determine the curing rate and final mechanical properties.
To ensure bond strength with concrete, surface textures are added immediately after curing:
Full sand coating
Helical fiber wrapping
Ribbed/threaded patterns
Each surface type provides different pull-out characteristics.
Bars are cut to length and tested for:
Tensile strength
Modulus of elasticity
Fiber content ratio
Glass transition temperature (Tg)
Bond performance
Manufacturing consistency is essential for ASTM D7957 compliance.
FRP rebar has become a significant export product for North America, Europe, and Asia-Pacific. The supply chain is driven by raw fiber availability and resin market stability.
Typical export minimums:
1–3 tons for LCL shipments
12–22 tons for full container loads
Pre-bent shapes generally require higher MOQs due to custom tooling
GTOFRP™ supports OEM and private-label production for distributors.
Lead time depends on:
Diameter
Fiber type
Surface texture
Order volume
Typical timelines:
Standard diameters: 10–20 days
Large custom runs: 20–35 days
Pre-bent or project-specific shapes: 25–45 days
To avoid deformation and UV exposure:
Reinforced pallets
Moisture-protected wrapping
Steel or composite strapping
Optional pallet-free bundle packaging for remote deliveries
Global shipments typically use:
FOB, CIF, CFR
Major Asian and European loading ports
Container-based export for quality stability
This makes FRP rebar practical for large infrastructure deployments across regions where steel corrosion is a recurring issue.
FRP rebar pricing varies by fiber type, diameter, resin, and market conditions. Price behavior differs from steel because FRP is not tied to scrap markets.
Fiber Material
Fiberglass (most cost-effective)
Basalt (mid-range)
Carbon (highest-performance tier)
Resin System
Vinyl ester > epoxy > polyester in cost
Higher corrosion resistance usually means higher price.
Surface Texture
Sand-coating adds additional processing cost
Wrapped textures depend on fiber consumption
Order Size
Large volumes reduce per-ton cost through production efficiency.
Export Distance
Ocean freight significantly impacts total landed cost for long-distance projects.
FRP rebar tends to stay within a stable market range that does not fluctuate with steel prices. Pricing varies by region and contract volume.
Buyers typically evaluate cost based on:
Service-life savings
Reduced maintenance
Lightweight handling benefits
Corrosion protection value
Projects in marine and chemical facilities often choose FRP purely for lifecycle economics rather than initial cost.
A decision framework for engineers, contractors, and procurement teams:
Chlorides
Humidity
Chemicals
EMI-sensitive environments
If corrosion or electromagnetic neutrality is required, FRP is preferred.
Required tensile strength
Crack control strategy
Stiffness criteria
Carbon rebar is suitable where a higher modulus is needed.
Ensure compliance with:
ASTM D7957
ACI 440 series
Local approval requirements
Based on:
Structural loads
Cover requirements
Thermal considerations
Key factors:
Surface uniformity
Resin quality
Fiber content accuracy
QA/QC documentation
GTOFRP™ provides batch-level testing data upon request.
A brief, non-repetitive overview of factory-level strengths:
High-volume pultrusion lines supporting:
Standard FRP rebar
Basalt rebar
Carbon rebar
Sand-coated and wrapped textures
Pre-bent shapes for civil projects
Custom branding
Private-label packaging
Regional stocking programs
Batch tensile testing
Resin and fiber ratio monitoring
Surface uniformity inspection
Dimensional accuracy control
Project-based parameter selection
Technical documentation packages
Export specification customization
This ensures compatibility with global infrastructure standards.
In tensile performance, FRP rebar exceeds steel. Stiffness varies by fiber type.
No. It is selected for environments where corrosion resistance or electrical neutrality is required.
No. Pre-bent shapes must be manufactured in advance.
Service life is significantly longer than steel in aggressive environments due to zero corrosion.
Standard cover requirements apply. Check ACI 440 for project-specific guidelines.
Yes, when using sand-coated or ribbed textures with correct spacing.
FRP rebar provides long-term structural stability in environments where steel struggles with corrosion, chemical exposure, and electromagnetic interference. Its high tensile strength, low weight, and predictable lifecycle cost make it a practical reinforcement option for marine works, bridges, industrial plants, tunnels, and commercial foundations.
For international procurement teams, FRP offers stable pricing and reliable export logistics. For engineers, it provides a corrosion-proof reinforcement option aligned with ASTM, ACI, and ISO standards.
GTOFRP™ supports global distributors, project contractors, and OEM buyers with a full range of fiberglass, basalt, and carbon reinforcement systems, ensuring consistent performance and professional engineering support.
