FRP Water Tank Specifications and Global Standards (ISO, ASTM, BS)

1. Overview of FRP Water Tank Standards

FRP (Fiberglass Reinforced Plastic) water tanks are manufactured according to strict engineering codes that define material quality, structural design, and testing procedures.
The standards differ depending on tank type—SMC panel tanks, cylindrical winding tanks, or custom molded tanks—but share one goal: ensuring mechanical integrity and water safety.

Primary Standards and Organizations

Standard	Organization	Scope
ISO 9001 / 14001	International Organization for Standardization	Quality & environmental management
ISO 3582 / 28765	ISO	GRP tanks for potable and industrial liquids
ASTM D3299 / D4097	ASTM International (USA)	Filament wound & contact molded FRP tanks
BS EN 13280	British Standards Institution	GRP tanks for potable water
NSF/ANSI 61	NSF International (USA)	Drinking water system components
WRAS Approval (UK)	Water Regulations Advisory Scheme	Hygienic certification for water contact materials

View FRP tank product specifications →

2. Material Composition and Performance Requirements

a. Resin System

Unsaturated polyester resin (UPR) for standard water storage
Vinyl ester resin for chemical resistance and high temperature
Food-grade resin (NSF/WRAS approved) for potable water

b. Fiberglass Reinforcement

E-glass fibers used for strength and corrosion resistance
Typical reinforcement ratio: 25–30% by weight

c. Mechanical Properties

Property	Minimum Requirement	Test Standard
Tensile Strength	≥ 100 MPa	ASTM D638
Flexural Strength	≥ 150 MPa	ASTM D790
Barcol Hardness	≥ 40	ASTM D2583
Water Absorption	≤ 0.3%	ASTM D570

These parameters ensure mechanical stability, dimensional accuracy, and leak-tight performance under hydrostatic loads.

3. Design and Structural Specifications

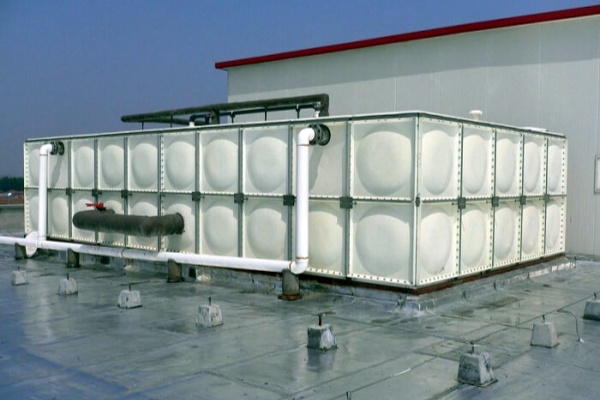

a. Panel Tank (SMC Type)

SMC water tanks follow modular panel assembly design standards such as:

Panel Size: 1m × 1m or 1.5m × 1.5m
Thickness: 5–12 mm based on tank height
Reinforcement: External galvanized or stainless steel frame
Sealing Material: EPDM food-grade gasket

b. Cylindrical Filament-Wound Tank

For industrial storage and wastewater:

Design Code: ASTM D3299
Winding Angle: 55–65° for hoop strength
Safety Factor: ≥ 10:1 against burst pressure

c. Allowable Deflection and Stress

Tank Type	Max Deflection	Safety Factor
SMC Panel	≤ 1/250 of span	4.0
Filament Wound	≤ 1% of diameter	5.0

4. Testing and Inspection Procedures

Each FRP tank must pass a series of factory and field tests to verify quality compliance.

Test	Purpose	Standard
Hydrostatic Test	Leak and strength validation	ISO 28765
Visual Inspection	Check defects, alignment	ASTM D2563
Gel Coat Thickness Test	Surface protection check	ISO 2812
Hygiene & Odor Test	Potable water safety	BS EN 13280
UV & Weathering Test	Outdoor performance	ASTM G154

Testing ensures the product meets both mechanical and hygienic requirements before commissioning.

5. International Approvals for Potable Water Tanks

Potable FRP tanks used in municipal and commercial buildings must comply with:

WRAS (UK) or NSF/ANSI 61 (US) for contact water safety
GB 5749-2022 (China) – Hygienic standard for drinking water
BIS IS 14399 (India) – GRP water storage requirements

Certified tanks are approved for hospitals, schools, and residential complexes, where hygiene and taste neutrality are mandatory.

6. Installation and Compliance Verification

During installation, adherence to specification is crucial:

Base Level Tolerance: ≤ 1/500 of total tank length
Bolt Torque Control: 12–15 N·m for panel joints
Sealant Compatibility: Must meet EN 681-1 standard
Post-installation Inspection: Hydrotest after 24-hour curing

Site supervisors should ensure all records of inspection and material certificates are archived for final handover.

7. Summary Table: Key FRP Tank Standards by Type

Tank Type	Applicable Standards	Certification Options
SMC Modular Panel	ISO 9001 / BS EN 13280	WRAS / NSF
Filament Wound Vertical Tank	ASTM D3299 / D4097	ISO 28765
Underground FRP Tank	ASTM D4021	UL 1316
Chemical Storage FRP Tank	ASTM C582	FM Approved

8. Conclusion

Compliance with FRP water tank specifications and international standards is not just a regulatory requirement — it’s essential for system reliability, user safety, and long-term operation.
Whether for SMC modular water tanks in buildings or filament-wound FRP tanks in industrial facilities, standard adherence guarantees performance consistency across global markets.
